PVC processing aid for pipe

PVC processing aid for pipe Specification

Storage
Room Temperature

Physical Form
Powder

Properties
ACR processing aids for PVC pipes are critical additives characterized by a low dosage yet significant impact. By accelerating plasticization, enhancing melt strength, improving surface finish, and stabilizing production processes, they serve as an indispensable material for achieving efficient, high-quality PVC pipe extrusion.

Usage
2~3 phr

Application
Industrial

Taste
Other

Smell
Other

Shelf Life
2 Years

HS Code
390690

Shape
other

Poisonous
NO

Product Type
General chemical

About PVC processing aid for pipe

PVC processing aidspredominantly Acrylic Copolymers (ACR)are critical additives for the extrusion molding of rigid PVC pipes. Their primary functions include accelerating plasticization, enhancing melt strength, and improving surface finish and processing stability. Typically, an addition level of just 12 phr is sufficient to significantly optimize pipe production efficiency and product quality.

I. Basic Definition and Composition

- Full Name: PVC Processing Aid

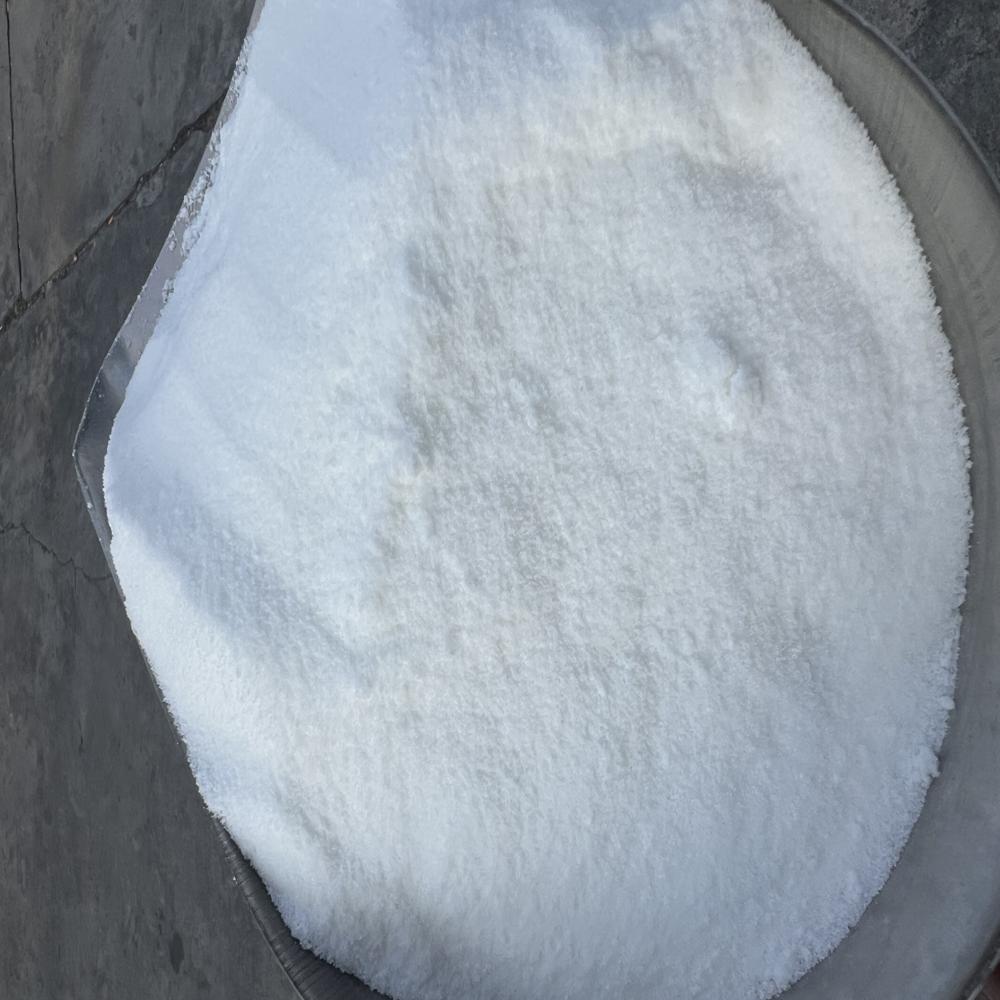

- Dominant Type: ACR (Acrylic Copolymer). Synthesized primarily from monomers such as Methyl Methacrylate (MMA) and Butyl Acrylate (BA), it presents as a white powder and exhibits excellent compatibility with PVC.

- Molecular Weight Range:

- Standard Grade: 500,0001.5 million. Suitable for conventional pipe extrusion; characterized by rapid plasticization and good flow properties.

- High Melt Strength Grade: Above 1.5 million. Suitable for large-diameter, thick-walled, or high-speed extrusion applications; designed to enhance melt stability.

II. Core Functions in PVC Pipe Production

1. Accelerating Plasticization and Reducing Energy Consumption

- It melts prior to the PVC resin, adhering to the resin particles to increase internal friction and shear heat. This reduces plasticization time by over 30%, lowers processing temperatures, and mitigates the risk of thermal degradation in the PVC.

- It improves plasticization uniformity, preventing localized over-plasticization or under-plasticization, thereby reducing defects such as rough inner walls, "fisheyes," and scorching.

2. Enhancing Melt Strength and Extrusion Stability

- It increases melt viscosity and elasticity, suppressing melt fracture and excessive die swell. This ensures uniform wall thickness and dimensional stability in the pipes during high-speed extrusion.

- It minimizes surface defects such as "sharkskin" and improves the molding success rate for large-diameter or thin-walled pipes.

3. Improving Surface Gloss and Appearance

- It promotes thorough material fusion, resulting in smooth, high-gloss inner and outer pipe surfaces that elevate the overall aesthetic and quality grade of the product.

- It reduces surface imperfectionssuch as pitting, flow lines, and exudationthat typically result from inadequate plasticization. 4. Optimization of Processing Window and Production Efficiency

- Broadens the applicable range of temperature and shear rates, reducing sensitivity to equipment and process variations, thereby minimizing downtime for adjustments.

- Increases extrusion rates and lowers specific energy consumption, making it suitable for high-filler formulations (e.g., those containing high levels of calcium carbonate).

III. Mechanism of Action (in Pipe Extrusion Applications)

1. Melt Encapsulation: The ACR melts first, uniformly encapsulating the PVC particles and facilitating the transfer of shear forces and heat.

2. Internal Friction Plasticization: High-molecular-weight ACR increases internal friction within the melt, generating internal heat and accelerating the gelation (plasticization) process.

3. Melt Strengthening: The entanglement of long molecular chains enhances melt strength, effectively suppressing melt fracture and sagging.

4. Lubrication Balance: Certain chain segments possess inherent internal lubricating properties; these work synergistically with external lubricants to optimize melt flow and mold release.

Selection Principles:

- Standard Pipes: Select medium-to-low molecular weight, fast-plasticizing grades (e.g., the 401 series).

- Large-Diameter / High-Speed / High-Filler Pipes: Select high-molecular-weight, high-melt-strength grades (e.g., the 801 series).

- Transparent Pipes: Select low-viscosity, high-transparency grades (e.g., the 20 series).

V. Usage and Handling Precautions

- Dosage: For rigid pipes, the recommended dosage is 1.02.0 phr (parts per hundred parts of resin). Excessive use may result in excessively high melt viscosity and extrusion difficulties; insufficient use leads to incomplete plasticization and poor surface finish.

- Formulation Synergy: Should be used in conjunction with heat stabilizers, internal/external lubricants, and impact modifiers (e.g., CPE/MBS) to achieve a balanced profile of plasticization, lubrication, and impact resistance.

- Processing Parameters: Extrusion temperatures may be slightly reduced, and screw speeds increased, to enhance both production efficiency and product quality.

VI. Summary

ACR processing aids for PVC pipes are critical additives characterized by a low dosage yet significant impact. By accelerating plasticization, enhancing melt strength, improving surface finish, and stabilizing production processes, they serve as an indispensable material for achieving efficient, high-quality PVC pipe extrusion.
